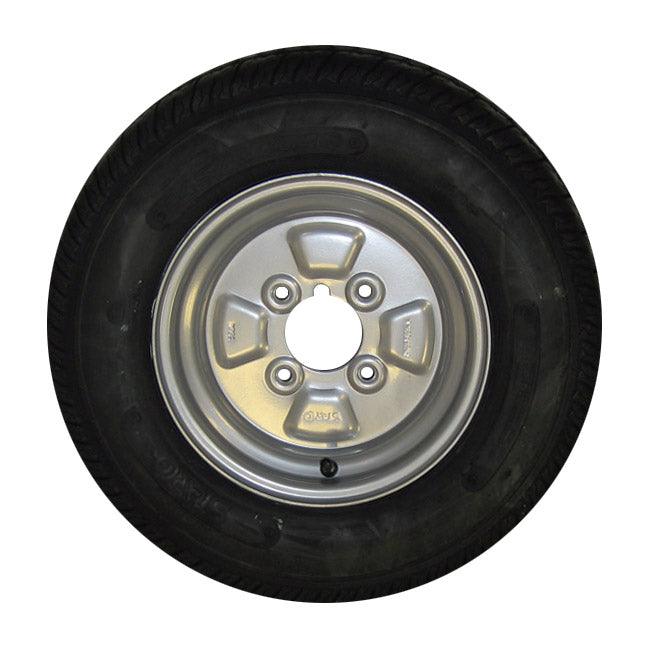

Trailer Wheel and Tyre - 145x10 - 4 inch Pcd
Trailer Wheel and Tyre - 145x10 - 4 inch Pcd
Regular price
£59.95
Regular price
£59.95
Sale price
£59.95
Shipping calculated at checkout.
In stock
Key Features
- 10" Trailer Wheel with 145x10 Tyre
- Centre Web Wheel Rim
- 4-Stud / 4" (101.6mm) Pitch Circle Diameter
- 67mm Centre Bore
- Max Load Per Wheel: 827lbs/375kg @ 40PSI/2.75 BAR
Quantity
Couldn't load pickup availability
Complete trailer wheel: Rim & Tyre assembly
| Tyre Size | 145/80 x B 10" Tubeless |
| Ply | Bias Belt: 4 ply |
| Max Load | 827lbs/375kg @ 40PSI/2.75 BAR |
| Studs | Four Stud Fixing |
| PCD* | 4" |
| Web & Bore |
Centre Web with 65mm bore (centre hole) |
*Pitch Circle Diameter
The PCD, or Pitch Circle Diameter is the diameter of the circle passing through the stud centres
For a 4-stud wheel, simply measure between diagonally opposing stud centres, passing through the centre of the rim. For a 5-stud wheel the PCD can be calculated by taking the distance between two adjecent stud centres and multiplying that measurement by 1.7012 to calculate the PCD.
