Towing Glossary & Jargon-Buster

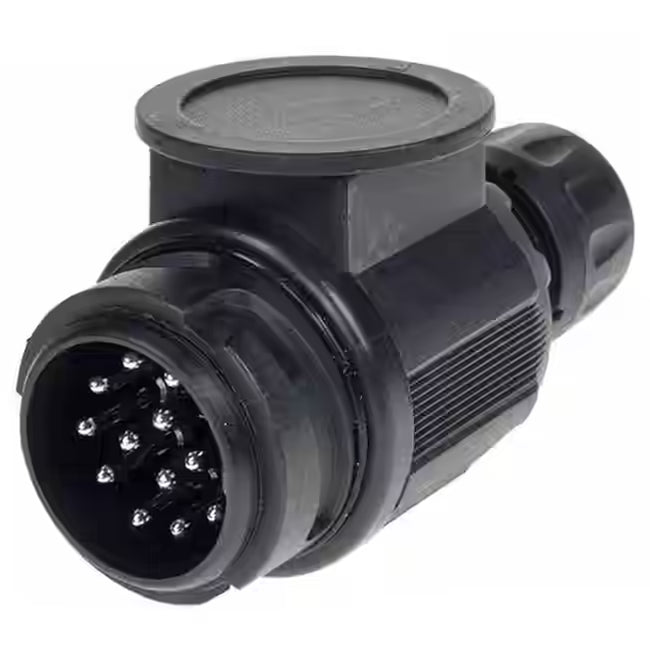

13-Pin Electrics are the modern European standard. Introduced on most caravans from 2008 onwards, this system combines all the functions of the old twin 7-pin sockets into one neat, highly secure, twist-and-lock plug.

A 13-pin socket provides both your legal road lighting and the supplementary interior power for your caravan in one single connection. It is significantly more waterproof and reliable than the older 7-pin design.

7-Pin Electrics are the older style of towing sockets, easily identified by their black or grey plastic caps with a flip-down lid.

• The Black 12N socket: Provides power to all the legal road lights on your trailer (indicators, brake lights, and fog lights).
• The Grey 12S socket: This was an optional secondary socket used specifically for caravans. It provided supplementary power to run the internal fridge, charge the leisure battery, and operate the reversing lights.

The 85% Rule is not a strict law, but it is a widely accepted safety guideline championed by the Caravan and Motorhome Club.

The rule strongly advises that the total loaded weight of your caravan should not exceed 85% of your towing car’s kerbweight. If the caravan is heavier than the car towing it, the "tail wags the dog," making the unit highly susceptible to dangerous swaying and snaking. If you are an experienced tower, going up to 100% is considered acceptable, but you should never tow a trailer that outweighs your car.

What is an AL-KO Stabiliser?

An AL-KO Stabiliser is a highly popular, specialised hitch head fitted to the A-frame of most modern caravans.

Unlike a standard trailer hitch, an AL-KO stabiliser contains heavy-duty friction pads inside the head. When you drop the hitch onto your car's towball and push the large stabiliser handle down, these pads clamp tightly around the ball. This friction actively dampens movement, vastly reducing "snaking" (side-to-side swaying) and pitching (up-and-down bouncing) while you are towing, making your journey much smoother and safer.

Do I Need a Special Towball for an AL-KO Stabiliser?

Yes, you often do. Because the AL-KO hitch head is significantly bulkier than a standard hitch, it needs more clearance to articulate (turn) safely.

• If you have a flange towbar: You must fit an AL-KO compatible towball (sometimes called an extended neck towball). If you use a standard, stubby flange towball, the bulky stabiliser head will hit the metal faceplate when you turn a corner. This can cause severe damage or even force the caravan to unhitch.
• If you have a swan neck or detachable towbar: The good news is that almost all swan neck designs naturally have the required clearance built-in, so they are already AL-KO compatible.

A Crucial Tip: Keep Your Towball Dry!

If you are towing a caravan with an AL-KO stabiliser, never put grease on your towball.

Because the stabiliser relies on friction to work, the towball must be kept completely dry and clean. Before you hitch up for the first time, you must use emery cloth or fine sandpaper to remove all the black paint from your new towball, followed by a wipe-down with brake cleaner. If grease or paint gets onto the stabiliser's internal friction pads, they will be ruined and will need to be completely replaced.

ATC (Active Trailer Control) is an intelligent emergency braking system manufactured by AL-KO and fitted directly to the chassis of many modern caravans.

It acts exactly like the electronic stability control in your car. Using sensitive gyroscopes, ATC constantly monitors the caravan for side-to-side movement. If it detects a dangerous "snake" starting to build up, ATC instantly and smoothly applies the caravan's brakes on its own, pulling the unit straight and restoring stability before the driver even needs to react.

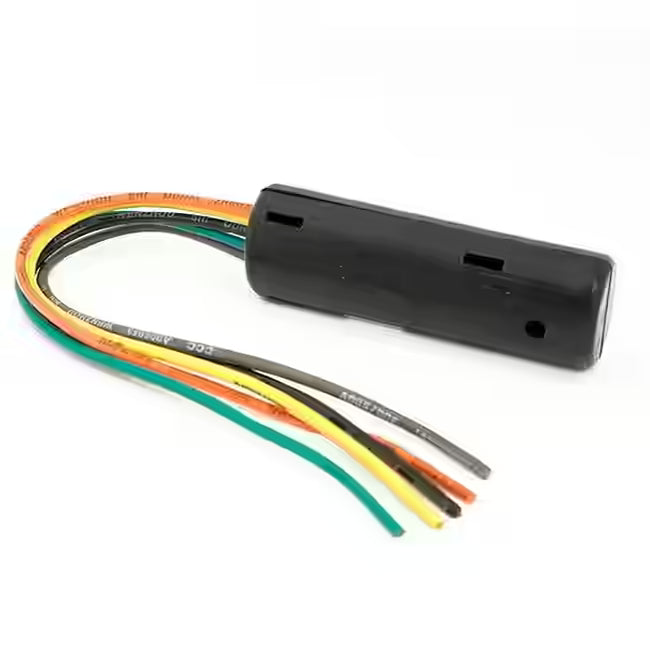

What is an Audible Relay?

An Audible Relay (often simply referred to as a towing buzzer) is a small electronic device fitted as part of your towbar's electrical system. Its job is to emit a clear "beep, beep, beep" sound from the rear of your car in time with your indicators, but only when a trailer or caravan is securely plugged in.

Why is it Required?

Having a working "tell-tale" monitor for your trailer's indicators is a strict legal requirement in the UK. When you are towing, you must have a system that alerts you if your trailer's indicator lights fail.

The audible relay fulfils this law perfectly. While your trailer is plugged in and the indicators are working correctly, the relay will beep. If a bulb on your trailer blows, or the plug comes loose while driving, the beeping will instantly stop (or change its rhythm), immediately warning you that you have a faulty light at the back of your rig.

Will My New Towbar Have a Buzzer?

That depends entirely on the type of electrical kit you choose to have fitted:

• With Universal Electrics: If you opt for a cheaper, universal wiring kit, the towbar fitter will almost always install an audible relay. It is usually tucked away behind the interior trim panels in your boot, but loud enough to hear from the driver's seat.
• With Dedicated Electrics (VSK): If you choose a Vehicle-Specific Wiring Kit, you usually will not need a buzzer. Because dedicated electrics communicate directly with your car's central computer, the vehicle handles the "tell-tale" warning visually. If a trailer indicator fails, you will simply get a warning on your dashboard (such as a fast-flashing green arrow or a specific text alert), exactly as you would if a bulb on the car itself had blown.

What Happened to A1 Towing?

A1 Towing was once a highly respected, independent British towbar manufacturer based right here in Sheffield. For many years, they were known for producing incredibly rugged, heavy-duty towbars built from certified British steel, becoming a trusted name for both trade fitters and DIY enthusiasts across the UK.

Unfortunately, A1 Towing is now defunct and they are no longer manufacturing new towbars. Because of this, it is highly unlikely you will find a brand new A1 towbar for modern vehicles today.

What is the Best Alternative to A1 Towing?

If you are specifically searching for an A1 Towbar because you want that renowned "Steel City" build quality and heavy-duty reliability, the direct modern equivalent is PCT Automotive.

Much like A1 Towing, PCT Automotive is a historic, family-run manufacturer deeply rooted in Sheffield's world-famous steelworking heritage. In fact, following the closure of A1, PCT Automotive has proudly carried the torch for Sheffield manufacturing, often stepping in to support the market and producing the same robust, Type Approved, no-nonsense towbar designs that A1 customers were fiercely loyal to.

We Proudly Stock PCT Automotive

Here at Towbars.co.uk, we are proud stockists of PCT Automotive towbars.

If you are looking to replace an old A1 Towing system or simply want to support premium British manufacturing, a PCT towbar is the perfect choice. Every PCT towbar is UK-manufactured in Sheffield, finished with a highly durable powder coating, and comes with a lifetime guarantee. When you choose a PCT towbar from us, you are guaranteed that legendary Steel City strength and engineering.

What is a Bypass Relay?

A Bypass Relay is a small electronic box used when fitting a "universal" towbar wiring kit. Its job is to power the lights on your caravan, trailer, or cycle carrier without upsetting your car's onboard computer.

Why Do I Need One?

Modern cars use complex electrical systems (often known as CAN bus or multiplex wiring) that closely monitor exactly how much power every bulb on your car is using. This is how your dashboard knows to warn you if a brake light or indicator bulb has blown.

If a towbar fitter simply wired your trailer lights directly into your car's rear lights, the car's computer would detect the sudden, massive extra power draw. It would assume there is an electrical short circuit or fault, and it would likely shut off the power entirely, display an error on your dashboard, or potentially even damage your car's expensive Engine Control Unit (ECU).

How Does it Work?

The bypass relay solves this problem by doing exactly what its name suggests: it bypasses the car's lighting circuit.

Instead of stealing power from your rear lights, the relay takes a dedicated power feed straight from your car's battery or fuse box. The relay is then wired into your car's rear lights, but it only "listens" for a tiny signal.

When you turn on your car's left indicator, the relay detects that tiny signal, but it uses the separate battery power to switch on the trailer's left indicator. Because the relay only takes a microscopic signal from the lighting circuit, your car's computer doesn't even realise the trailer is there, meaning your lights work perfectly with zero dashboard errors.

Good to know: A bypass relay is only used with Universal Wiring Kits. If you choose a Dedicated Wiring Kit (which plugs directly into the vehicle's factory sockets and communicates with the car), a bypass relay is not required.

A Breakaway Cable is a vital steel safety wire that connects your trailer's handbrake lever to a secure eyelet on your car's towbar.

It is a strict legal requirement for any trailer or caravan fitted with brakes. If the absolute worst happens and your trailer unhitches from your towball while driving, the breakaway cable will pull the trailer's handbrake on, bringing it to a safe, controlled stop before the cable snaps entirely.

What is a CAN Bus System?

CAN bus stands for "Controller Area Network". The easiest way to understand it is to think of it as your car's central nervous system or its own internal computer network.

In older cars, every single electrical component — like a brake light or the horn — had its own physical, dedicated wire running all the way from the switch on the dashboard to the battery. As cars became more advanced, this resulted in heavy, incredibly complicated miles of wiring.

A CAN bus system solves this by connecting everything in the car to one shared network (the "bus"). Instead of using basic electrical currents to turn things on and off, the car's computers send tiny digital messages around the vehicle. For example, when you indicate left, the computer sends a digital message down the network saying, "Left indicator, please turn on," and the light responds.

Why Does it Matter for My Towbar?

Because a CAN bus system is incredibly smart, it constantly monitors exactly how much power every component in your car is using. This is how your dashboard knows to warn you the exact second a specific bulb has blown.

If you were to simply splice a new towbar wire directly into your car's rear lights, the CAN bus system would instantly detect the sudden extra power being drawn by your caravan or trailer. The computer would assume there is an electrical fault or a short circuit, and it would immediately cut the power to your lights or display a string of error messages on your dashboard.

How Do We Wire a Towbar to a CAN Bus Car?

Because almost all modern cars use CAN bus networks, towbar electrics have had to adapt. There are two ways to safely connect a towbar without upsetting the car's computer:

1. Use a Universal Bypass Relay: As mentioned earlier in our glossary, a bypass relay takes power directly from the battery and only "listens" for a microscopic signal from the CAN bus network to know when to turn the trailer lights on. Because the signal it takes is so tiny, the car's computer never even notices the trailer is there.
2. Use a Vehicle-Specific Wiring Kit (VSK): This is the modern gold standard. A VSK plugs directly into the car's factory ports and is designed to actually "speak" the digital language of your CAN bus system. Once plugged in (and occasionally coded), the car's computer officially recognises the trailer and works with it seamlessly, even activating advanced safety features like the Trailer Stability Program.

What is a D-Value?

The D-Value (which stands for Drawbar Value) is a measurement of the horizontal strength of your towbar. Expressed in kiloNewtons (kN), it represents the maximum pulling and pushing force safely exerted between your towing vehicle and your caravan or trailer.

Why Does it Matter?

When a towbar is manufactured and rigorously tested for European Type Approval, it is certified to a specific D-Value. This guarantees that the metalwork is strong enough to handle the immense forces that occur when you accelerate, brake, and navigate uneven roads while towing.

If you look at the metal identification plate attached to your towbar, you will clearly see the D-Value stamped on it (for example, D = 10.4 kN). This figure relies on a calculation that links the maximum fully loaded weight of your vehicle to the maximum weight of your trailer to ensure they are a safe, legal match.

Do I Need to Calculate This Myself?

Thankfully, no! You do not need to worry about doing the complex maths.

As long as you purchase a Type Approved towbar that is specifically designed for your exact make and model of vehicle, the manufacturer has already done the calculations for you. They guarantee that the towbar's D-Value meets or exceeds the maximum legal towing capacity set by your car's manufacturer.

A Detachable Towbar gives you the best of both worlds. It operates exactly like a fixed towbar, but the entire neck piece can be quickly removed when you are not towing.

Using a simple quick-release handle and an anti-theft key lock, you can detach the neck and store it in your boot. This leaves the back of your car looking completely standard, stops you from banging your shins when loading the boot, and guarantees that your rear parking sensors will not be obstructed.

A Flange towbar is the traditional, heavy-duty British design. Instead of a curved neck, it has a flat metal faceplate. A separate, standard towball is then bolted onto this plate using two heavy-duty bolts.

While it looks slightly bulkier than a swan neck, it is incredibly versatile. The bolt-on design means you can fit accessories like a bumper protector plate, a drop-plate, or a towbar-mounted cycle carrier right behind the towball, allowing you to tow a caravan and carry bikes at the exact same time.

Your Gross Train Weight (GTW) is an absolute legal limit set by your vehicle's manufacturer. It is the maximum allowed combined weight of your fully loaded car AND your fully loaded caravan or trailer.

You will find this figure stamped on your vehicle's VIN plate (usually located under the bonnet or inside the driver's door frame). If you are pulled over by the police or the DVSA and your combined weight exceeds the GTW on that plate, you are breaking the law and driving an unsafe vehicle.

Kerbweight is the total weight of your vehicle when it is completely empty of passengers and cargo. It includes all the standard equipment, a full tank of fuel, and the necessary engine fluids (like oil and coolant) required to drive it away from the kerb.

You can usually find your car's exact kerbweight in your owner's handbook or on the V5C logbook. This figure is incredibly important for beginners, as it forms the basis of the famous "85% Rule" for safe towing.

Your Maximum Towing Limit (sometimes called towing capacity) is the absolute heaviest trailer or caravan your specific vehicle is legally allowed to tow.

This is determined by the manufacturer based on the strength of your car's chassis, engine, and brakes. You can usually find it in your V5C logbook under "Towable mass (braked)". Exceeding this limit will void your insurance and is highly dangerous.

What is Noseweight?

Noseweight is the downward weight or pressure that the hitch of your caravan or trailer exerts onto your car's towball.

It is one of the most critical factors for safe towing. To ensure your vehicle remains stable on the road, you must ensure that your noseweight is carefully managed before every journey.

Why Does Noseweight Matter?

Getting the noseweight wrong drastically affects the handling, grip, and safety of your car:

• Too heavy: If there is too much downward weight, the rear suspension of your car will sag, lifting the front wheels. This severely reduces your steering control and front braking power, and causes your headlights to dazzle oncoming drivers.
• Too light: If there is not enough weight on the towball (often caused by loading too much heavy gear at the very back of a caravan), the trailer becomes highly unstable. It acts like a pendulum, lifting the rear wheels of your car and drastically increasing the risk of "snaking" (dangerous side-to-side swaying at speed).

How Do I Find My Maximum Noseweight Limit?

Every vehicle and towbar has a maximum legal noseweight limit, usually between 50kg and 100kg for standard passenger cars.

You need to check three different limits, and you must not exceed the lowest of the three:

1. The Vehicle Limit: Found in your car's owner's handbook.
2. The Towbar Limit: Found on the metal identification data plate attached to your towbar. Look for the S-Value, which is usually displayed as something like "S = 75kg".
3. The Trailer/Caravan Chassis Limit: Found stamped on the hitch head of your trailer.

For example, if your towbar's S-Value is 100kg, but your car's handbook states a maximum noseweight of 75kg, your absolute maximum legal limit is 75kg.

How Do I Measure It?

You should check your noseweight after you have fully loaded your caravan or trailer, right before setting off.

The easiest and safest method is to use a proprietary noseweight gauge. You simply wind up the jockey wheel so the trailer's hitch head rests directly onto the top of the gauge (with the bottom of the gauge resting on the ground) to get an instant reading.

If your noseweight is too high or too low, you simply need to redistribute your cargo. Move heavy items (like awnings or water containers) slightly further forwards or backwards inside the trailer, keeping the heaviest items low down and as close to the main axle as possible, until your gauge shows a safe reading.

What is an S-Value?

The S-Value is the maximum vertical load — measured in kilograms (kg) — that your specific towbar is engineered and legally certified to support.

If you look closely at the metal identification data plate attached to your towbar, you will see this figure stamped clearly on it (for example, S = 75kg or S = 100kg).

How Does the S-Value Relate to Noseweight?

While the S-Value is the engineered limit of your towbar, Noseweight (as detailed in our previous glossary entry) is the actual downward pressure your fully loaded caravan or trailer exerts onto the towball.

Your actual noseweight must never exceed your towbar's S-Value. However, it is crucial to remember that the S-Value is only one part of the safety equation. Your vehicle itself also has a maximum noseweight limit set by the car manufacturer.

You must always adhere to the lowest of these limits. For example, if your new towbar has a high S-Value of 100kg, but your car's owner's handbook states a maximum noseweight limit of 75kg, your absolute maximum legal noseweight on the road is 75kg.

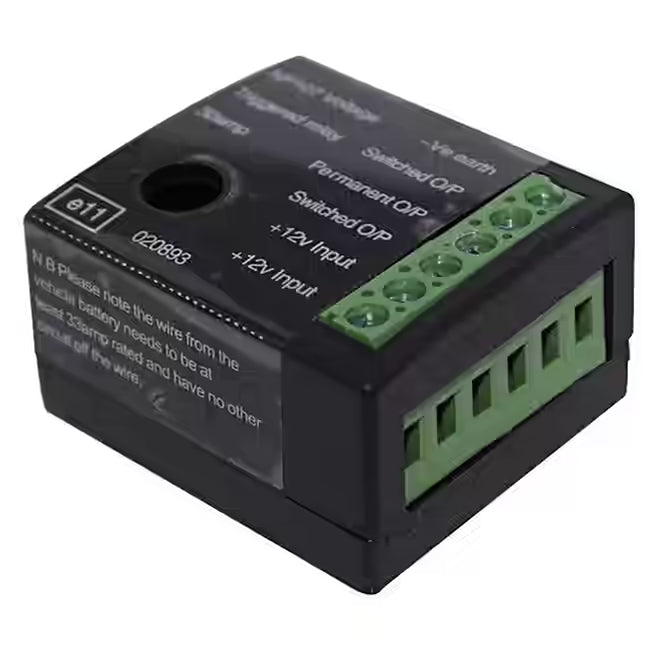

What is a Split Charge Relay?

A Split Charge Relay is an essential piece of electrical kit if you are towing a caravan. It allows your vehicle to charge the caravan’s leisure battery and power its internal fridge while you are driving, without running the risk of flattening your car's main starter battery when you stop.

How Does it Work?

When you start your car, the engine's alternator begins generating power. The split charge relay constantly monitors this electrical system. Once it detects that the voltage has risen (confirming the engine is running), the relay switches on, linking your car’s power supply directly to the caravan.

The clever part happens when you turn the engine off. As soon as the electrical voltage drops, the relay instantly breaks (or "splits") the connection between the vehicle and the trailer.

Why is this Important?

Imagine pulling into a motorway service station for a cup of tea. While you are parked up, your caravan’s fridge still needs power to keep your food cold. Because the split charge relay has completely disconnected the two electrical systems, the fridge will only draw power from the caravan's own leisure battery.

Your car's starter battery is safely isolated and remains fully charged, ensuring your engine fires up perfectly when it is time to hit the road again.

Good to know: A split charge system is a standard feature included when fitting a fully-wired 13-pin electrical kit, or when using the older grey 12S 7-pin socket systems specifically designed for caravan towing.

A Swan Neck towbar features a towball and neck made from one single, elegantly curved piece of metal.

Because of its compact and narrow design, it looks much neater on the back of your car than a traditional flange towbar. It is far less likely to trigger your vehicle's rear parking sensors when you are not towing, and it is naturally compatible with AL-KO friction stabilisers right out of the box.

What is a Secondary Coupling?

A Secondary Coupling is a heavy-duty safety chain or strong steel wire used exclusively when towing an unbraked trailer (typically smaller camping or utility trailers with a maximum gross weight of up to 750kg).

If your trailer’s hitch were to ever fail or bounce off the towball while you are driving, the secondary coupling acts as your emergency failsafe. Unlike a breakaway cable (which applies the brakes on a larger trailer and then deliberately snaps), a secondary coupling is designed to stay completely intact. It physically keeps the unbraked trailer tethered to the back of your car, preventing it from careering off into oncoming traffic and giving you time to bring your vehicle to a safe, controlled stop.

Is it a Legal Requirement?

Yes. Under UK law, it is a strict legal requirement that all unbraked road trailers are fitted with a secondary coupling. You must not tow a small, unbraked trailer without one. (Note: If your trailer has its own braking system, you must use a Breakaway Cable instead).

How Do I Attach It Correctly?

For maximum safety and to comply with best practice, you must attach the chain or cable to a dedicated, secure mounting eyelet or hole on your towbar. You should only ever loop the chain directly over the neck of the towball as an absolute last resort if your towbar does not feature a designated attachment point.

A crucial tip for setting the length: When you hitch up, ensure you leave just enough slack in the chain to allow your car and trailer to turn sharp corners without the chain pulling tight. However, you must not leave so much slack that the chain drags on the road, or that it would allow the trailer's heavy metal hitch head to hit the tarmac if it ever detached.

What is a Scotchlok?

Much like "Hoover" or "Sellotape", the word Scotchlok (often spelled as Scotch Lock) is actually a brand name that has become the everyday term for a "quick-splice connector". While Scotchlok is the original brand, you will find many variations of these handy clips on the market today.

It is a small plastic clip containing a specially designed metal blade inside, which allows you to join two electrical wires together without the need to strip the plastic insulation or use a soldering iron.

How are They Used in Towbar Fitting?

Scotchloks (or quick-splice connectors) are frequently included with "universal" towbar wiring kits because they make the installation incredibly accessible, especially for DIY home mechanics.

To connect your new towbar electrics, you simply place the clip over the existing wire for your car's rear lights, insert the new towbar wire into the spare channel, and squeeze the plastic shell shut with a standard pair of pliers. The metal blade inside cleanly cuts through the outer insulation of both wires, bridging them together to create an instant electrical connection.

Why are They so Popular?

• No Special Tools Required: You do not need wire strippers, a soldering iron, or heat-shrink tubing — just a standard pair of pliers.
• Incredibly Fast: They allow you to tap directly into your car's lighting circuit in a matter of seconds.
• DIY Friendly: They make fitting a universal wiring kit a highly approachable job for those fitting their own towbars at home.

Things to Keep in Mind

While these quick-splice connectors are an incredibly convenient and fast solution, it is important to install them carefully. You must ensure you squeeze the clip completely shut so the metal blade makes a solid connection and will not vibrate loose over time.

It is also worth noting that because they are not fully sealed against moisture, they should only be used inside the dry environment of your car's boot, never underneath the vehicle.

A Quick Tip: If you are a highly experienced DIYer looking for an absolute "factory level" permanent connection on a universal kit, you may choose to solder and heat-shrink your wires instead. Alternatively, you can avoid wire splicing altogether by opting for a Vehicle-Specific Wiring Kit (VSK), which uses direct plug-and-play factory connectors. However, for a straightforward, quick, and hassle-free installation, quick-splice connectors remain a widely used and perfectly handy solution.

What are Spring Assisters?

Spring Assisters are heavy-duty rubber, polyurethane, or auxiliary metal coil springs that are fitted directly into or alongside the existing rear suspension of your towing vehicle.

Their primary job is to provide extra support and stiffen the rear suspension, preventing the back of your car from sagging towards the road when it is under the heavy load of a caravan, a trailer, or a boot completely full of luggage.

Why Might I Need Them?

When you hitch up a heavy trailer, the downward pressure on the towball (the noseweight) pushes the rear of your car down. If your vehicle's standard suspension is quite soft, this causes a dangerous see-saw effect.

The rear of the car drops, which in turn lifts the front wheels off the road. This creates several serious hazards:

• Poor Handling: With less weight on the front tyres, your steering becomes light, vague, and unresponsive.
• Reduced Braking: Your front brakes do the vast majority of the stopping. If the front wheels are lifted, your braking distance dramatically increases.
• Blinding Headlights: As the nose of your car points upward, your headlights will dazzle oncoming drivers.
• Grounding Out: The towbar or your car's exhaust could easily hit the tarmac when driving over speed bumps or navigating uneven campsites.

Fitting spring assisters cures this by physically stopping the suspension from compressing too far, keeping your vehicle perfectly level and completely restoring your steering and braking control.

What is Trailer Prep?

Trailer Prep (short for Trailer Preparation) is a factory-fitted option where the manufacturer pre-installs essential towing components before your vehicle even leaves the production line.

If your car is "prepped," it usually means there is a dedicated electrical wiring loom already routed straight to the boot. Without this, a towbar fitter has to run cables all the way through your car's interior cabin to reach the fuse box and battery. In some cases, trailer prep also includes mechanical upgrades — like a heavy-duty cooling fan or a larger radiator — to handle the extra engine strain and heat that comes with towing.

Having Trailer Prep is great news. It makes fitting your dedicated towbar wiring kit faster, cheaper, and safer. Your new wiring simply "plugs and plays" into these existing factory connections, allowing it to communicate seamlessly with your car's onboard safety systems, such as trailer stability control and parking sensors.

How Can I Tell if My Vehicle Has Trailer Prep?

1. Check the Build Sticker (PR Codes)

If you drive a Volkswagen, Audi, Škoda, SEAT, or Porsche, the quickest way to check is by looking at your vehicle's build data sticker. You can usually find this inside the front cover of your service handbook or under the boot carpet near the spare wheel well.

Look for a specific 3-character PR Code related to towing:

• 1D8 means your car has Trailer Hitch Preparation.
• (For reference: 1D0 means no prep, and 1D9 means an electric folding towbar is already fitted).

2. Contact Your Main Dealer

The most definitive method for any make of vehicle — especially for brands like Ford, Mercedes, and BMW that frequently use trailer prep — is to call your local main dealer's parts department.

Just give them your vehicle's Registration Number or VIN. They can pull up your exact factory build sheet and tell you straight away if the "Trailer Preparation" package was included on your car.

TSP (Trailer Stability Program) is a highly advanced safety system built into the computer of many modern cars (though it requires Dedicated Electrics and Coding to be active).

While ATC is fitted to the caravan, TSP operates from the car itself. If your car's sensors detect that the trailer is swaying dangerously and pushing the rear of the car off course, TSP will step in. It dramatically cuts the engine's power and precisely applies the car's individual brakes (e.g., the front-left wheel, then the rear-right wheel) to kill the sway and pull the whole rig back into a straight line.

What is Type Approval (EC94/20)?

Type Approval (specifically under European Directive EC94/20) is a strict legal safety standard that governs the manufacturing and fitting of towbars.

Introduced to ensure maximum safety on the roads, the law dictates that any light passenger vehicle registered on or after the 1st of August 1998 must only be fitted with a towbar that has been officially Type Approved.

What Does the Testing Involve?

To achieve EC94/20 Type Approval, a towbar design must undergo incredibly rigorous independent testing. It is placed onto a specialized rig and subjected to a grueling two million push-and-pull cycles. This simulates a lifetime of heavy towing across varying road conditions, guaranteeing that the metalwork and welds will not stress, crack, or fail under pressure.

Furthermore, the law dictates that a Type Approved towbar can only be bolted to the exact, strengthened mounting points originally specified by the vehicle's manufacturer. A fitter cannot simply drill new holes into your car's chassis.

How Do I Know if My Towbar is Type Approved?

It is very easy to check. By law, every Type Approved towbar must have a permanent metal data plate or highly durable sticker clearly attached to it.

If you look at this label, you will find:

• An official approval number (which usually starts with a lowercase "e" followed by a country code, e.g., e11 for the UK).
• The maximum towing limits for that specific bar, including the D-Value and the S-Value (Noseweight limit).
• The vehicle details it was designed for.

If your vehicle was registered after August 1998 and your towbar does not have this data plate, it is technically illegal, it will fail an MOT, and it could invalidate your car insurance.

Are There Any Exceptions?

Yes, there are a few. The EC94/20 legislation originally only applied to standard passenger cars. If you are driving a commercial vehicle (like a panel van or a chassis cab) registered before 2012, or a classic car registered before August 1998, the strict Type Approval law does not legally apply. However, purchasing a certified towbar from a reputable manufacturer is still highly recommended for your own peace of mind.

What is a Vehicle-Specific Wiring Kit (VSK)?

A Vehicle-Specific Wiring Kit (VSK) — also widely known in the industry as Dedicated Electrics — is a highly advanced towing wiring loom that has been engineered exclusively for your exact make, model, and year of vehicle.

Unlike cheaper "universal" kits that require a fitter to manually cut or splice into your car's taillight wires, a VSK is designed to plug straight into the manufacturer’s pre-existing electrical connection points (often located behind the boot panels or at the main fuse box).

Why is a VSK the Best Choice for Modern Cars?

Modern vehicles use highly complex computer networks (known as CAN bus systems) to control everything from the engine management to the brake lights. A Vehicle-Specific Wiring Kit is designed to communicate flawlessly with this onboard computer.

Choosing a VSK unlocks a host of smart features that a universal kit simply cannot provide:

• Activates Safety Systems: It automatically tells the car when a trailer is attached, instantly engaging vital safety features like your car's Trailer Stability Program (TSP) to prevent dangerous swaying.
• Automatic Convenience: When you plug your trailer in, the VSK will automatically disable your car's rear parking sensors (so they don't constantly beep at the caravan) and switch off the car's rear fog light to stop it glaring back at you in the rearview mirror.
• Protects Your Warranty: Because a VSK plugs directly into factory-approved sockets without severing any original wires, fitting one completely protects your vehicle’s electrical warranty.
• Optimised Driving: In many modern vehicles, the VSK tells the engine and gearbox to adjust their cooling fan speeds and gear-shift patterns to safely handle the extra towing weight.

Do They Require "Coding"?

In many cases, yes. While the physical VSK plugs directly into the car, your vehicle’s central computer may need a quick software update (known as Coding or Recoding) to "wake up" and recognise that the new towbar module is there. A professional towbar fitter will do this using a specialised diagnostic laptop as the final step of the installation.

What is a VIN Plate (or Weight Plate)?

Your VIN Plate (Vehicle Identification Number plate) is a permanent metal plaque or highly durable sticker attached to your car by the manufacturer. While it contains your car's unique 17-digit chassis number, it also serves a second, incredibly important purpose: it officially displays your vehicle's absolute maximum legal weight limits.

If you are planning to tow a caravan or trailer, locating and understanding this plate is the most important check you will ever make. It is the only legally binding document regarding what your specific vehicle is allowed to tow.

Where Can I Find It?

On most modern vehicles, you will find the VIN plate acting as a sticker on the inside of the driver’s or passenger’s door frame (often right on the central B-pillar). If it is not inside the door shuts, you will almost certainly find it under the bonnet, either riveted to the front slam panel or attached to the suspension strut tower.

How to Read the Weights for Towing

Below your 17-digit chassis number, you will usually see a vertical list of four weights (measured in kilograms). They always appear in this specific order:

1. Top Number (Gross Vehicle Weight / MAM): The maximum legally permitted weight of your car, fully loaded with passengers, fuel, and luggage.
2. Second Number (Gross Train Weight / GTW): The absolute maximum legally permitted combined weight of your fully loaded car AND your fully loaded trailer.
3. Third Number: Maximum front axle weight.
4. Fourth Number: Maximum rear axle weight.

To find your car's exact Maximum Towing Limit, you simply do some basic maths: subtract the top number from the second number. (For example: If your GTW is 4200kg, and your Gross Vehicle Weight is 2505kg, your maximum towing limit is 1695kg).

A Crucial Warning: Is Your Car Allowed to Tow?

Sometimes, when you look at the VIN plate, the second line (the Gross Train Weight) will either be entirely blank, show a row of dashes (----), display zero (0000), or be exactly the same number as the first line.

If this is the case, your vehicle is not legally approved for towing under any circumstances.

This is highly common on modern electric vehicles, certain hybrid models, sporty trim levels (like an "M" or "AMG" line), or eco-focused editions. Even if the standard version of your car is an excellent tow car, if your specific VIN plate does not have a Gross Train Weight listed, it is illegal to fit a towbar to it for the purpose of towing.
